Gillo B-GRADE - GT 31in ILF riser

BIG DISCOUNTS - Gillo B-GRADE products are those with small cosmetic defects from final assembly and testing. All B-GRADE products are perfect for shooting and in most cases the cosmetic defects are not easily to spot. All items are held by the Gillo factory and are available on a first come, first served basis and include a full factory warranty with the exception of any cosmetic issues.

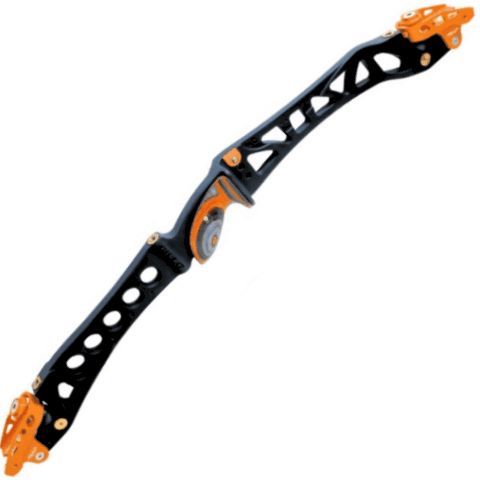

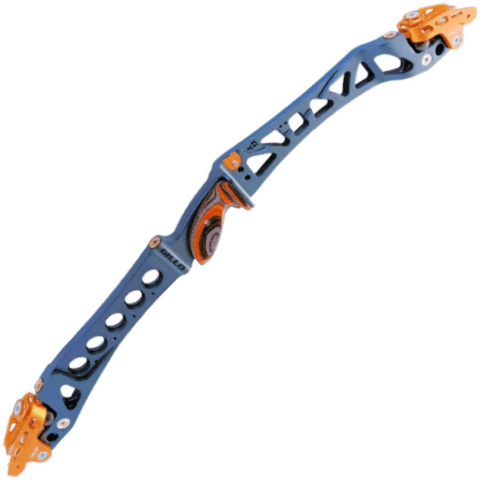

Extremely long 31 inch ILF recurve riser produced from high strength milled 7075-T6 aluminium alloy. Complete with dual colour anodized finish. Gillo GT floating limb pockets with 30% poundage adjustment range. Integrated vibration damping system. Limb alignment system. Approx 1650g weight.

Includes stainless steel limb bolts, wood multi layered colour grip, GRS-03 riser sleeve and G04-WH-01-K kit.

Compatible with all G1 and G4 barebow weights and GVB-K03 V Bar.

• Recurve & Bare Bow riser
• ILF limbs compatible
• Floating limbs pockets allow over 30% poundage adjustment range
• Integrated shock absorbers
• 31 inch length, RH version only
• Body machined from solid 7075 Aluminium bar
• Limbs pockets machined from solid Aluminium bar
• Matte sandblasted anodized surface
• Aluminium 7075 Limbs alignment plates
• Five special round seats for optional balancing weights
• Stainless steel limbs bolts assembled in AL 7075 Gold colour anodized bodies
• Hard Wood, Multi-Layer colour medium grip
• 3 front stabs bushings, 2 back stabs bushings, all made by Stainless Steel Gold colour Titanium Nitride coated
• 2 additional 5/16-24 UNF tapped holes on back for more stabilizers or vibration dampeners
• Front center stabilizer bushing 1mm off from axis for perfect balance
• Compatible to all G1, GQ and G5 Bare Bow weights, grips and accessories
• Approx. 1650 gr total weight
• Dual Colour versions RH: Gold/Blue (OBL), Gold/Black (OBK)
• Packing includes long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 x Allen wrenches, 5x SS screws for clicker and Bare Bow weights, 4 x Brass grub screws for limbs bolts locking and 1 x G04-WH-01-K BB weight holding kit.
• Gillo Product Code: G03L-RSI-31

Optional accessories available:

• G04-DK6-AL/ST - 6 disk weights kit (Al Black, SS Gold)
• G01-DK6 - 6 Stainless Steel disk weights kit
• G05-DK2 - 2 steel disk heavy weights kit
• G03-DK2-TG-GO - 2 Tungsten disk weights kit
• G01 or G02-CKK - Clicker plates in different colours and length
• G01-BW-01 - Bare Bow covers from 270 gr to 830 gr
• G01-BW-02 - Bare Bow Covers from 400gr to 1170 g
• G03-BW-03 - The Hammers Bare bow kit, AL or SS
• G04-BW-04 - Bare Bow covers from 300 to 950 g
• Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
• Various grips made by wood or plastic 3D printed in various colours

Hole Thread sizes:

• Limbs Bolts - 2 x M8
• Limbs Bolts side locking - 4 x M5
• Limbs Pockets side locking - 4 x M6
• Alignment plate inner locking - 2 x M6
• Alignment plate side locking - 4 x M5
• Front stabs - 3 x 5/16-24 UNF
• Rear stabs - 3 x 5/16-24 UNF
• Cushion plunger - 2 x 5/16-24 UNF
• Clicker and Clicker plate - 3 x M4
• Optional cover - 8 x M4
• Sight - 2 x 10-24
• Grip - 2 x M4
