Gillo B-GRADE - GT 25in ILF Cerakote riser

BIG DISCOUNTS - Gillo B-GRADE products are those with small cosmetic defects from final assembly and testing. All B-GRADE products are perfect for shooting and in most cases the cosmetic defects are not easily to spot. All items are held by the Gillo factory and are available on a first come, first served basis and include a full factory warranty with the exception of any cosmetic issues.

The next generation of Gillo risers is here!

Achieve a massive 30% poundage adjustment range with the unique Gillo GT limb pocket design.

• Recurve & Bare Bow riser
• ILF Limbs compatible
• Floating limbs pockets allow over 30% poundage adjustment range
• Integrated shock absorbers
• 25in length, RH version only
• Body and Pockets machined from solid Aluminium bar
• Cerakote finish surface for body, matte anodized finish for pockets
• Aluminium 7075 Limbs alignment plates
• Special round seats for optional balancing weights
• Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
• Hard Wood, Root colour medium grip
• 3 front stabs bushings, 1 back stabs bushings, all made by Stainless Steel Gold color Titanium Nitride coated
• 2 additional 5/16-24 UNF tapped holes on back for more stabilizers
• Front center stabilizer bushing 1mm off from axis for perfect balance
• Compatible to all G1, GQ and G5 Bare Bow weights, grips and accessories
• Compatible with "The Wheels" balancing system
• Approx. 1350g total weight
• Packing includes long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 5 clicker and BB weights SS screw, 2 bolt locking Brass grub screws

Dual Colour Options:

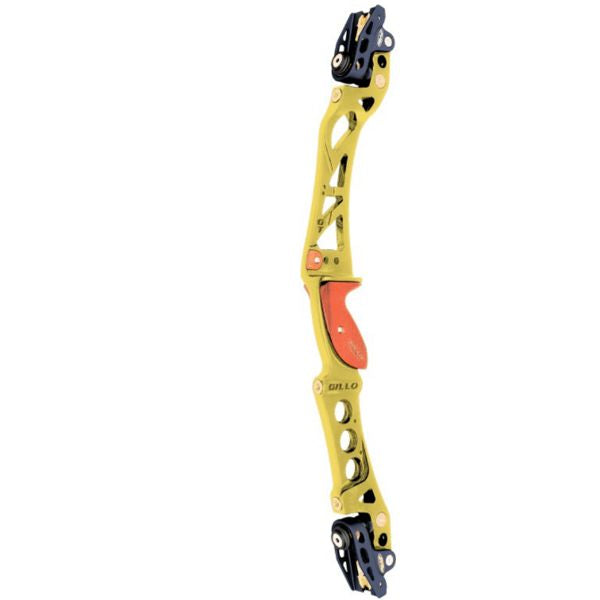

• RH Gold (KGO)

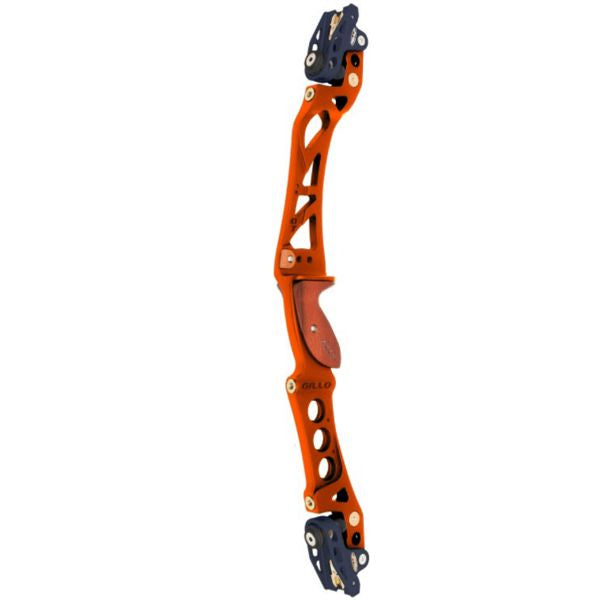

• RH Safety Orange (KSG)

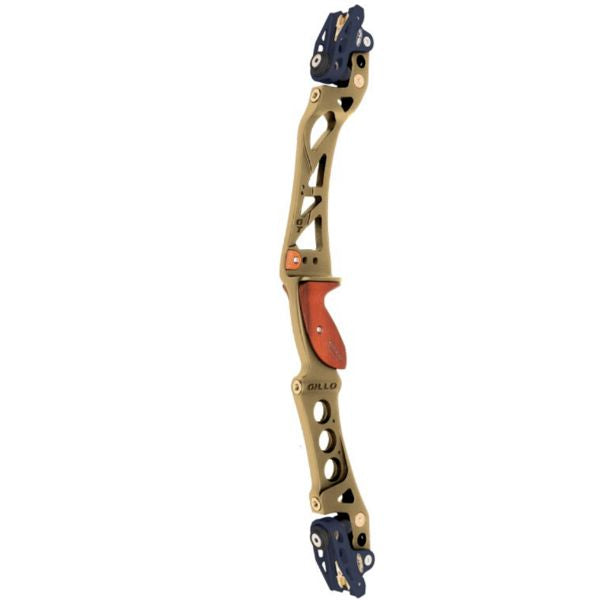

• RH Sand (KSN)

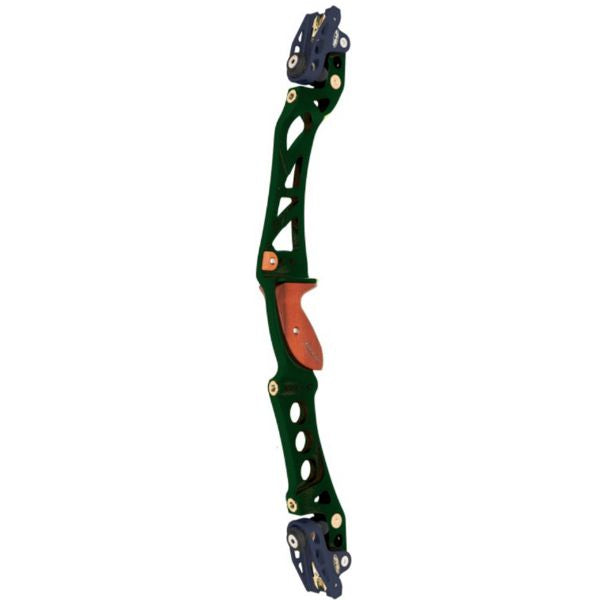

• RH Dark Green (KDG)

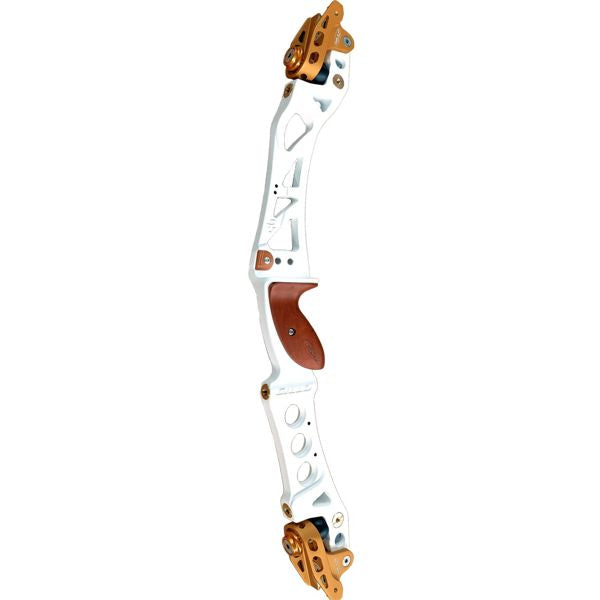

• RH White (OWH)

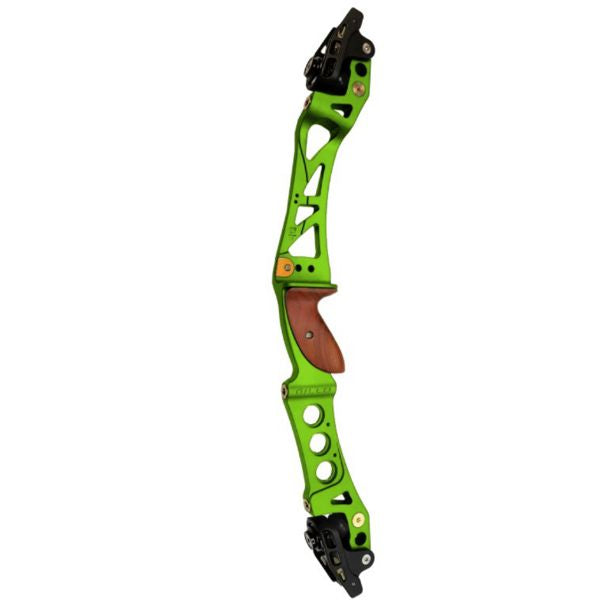

• RH Fluo Green (KFG)

Optional accessories available:

• G03-PF-01-AL-BK - pair of Formula limbs pocket to transform riser to G03L-RSF-27 version
• G04-DK6-AL/ST - 6 disk weights kit (Al Black, SS Gold)
• G01-DK6 - 6 Stainless Steel disk weights kit
• G05-DK2 - 2 steel disk heavy weights kit
• G03-DK2-TG - 2 Tungsten Disks gold colour
• G02-CKK - Plastic clicker plates in different colours and length
• G01-BW-01 - Bare Bow covers from 270g to 830g
• G01-BW-02 - Bare Bow Covers from 400g to 1170 g
• G03-BW-03 - The Hammers - Bare bow kit, AL or SS
• G04-BW-04 - Bare Bow covers from 300g to 950g
• Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
• Various grips made by wood or plastic 3D printed in various colours

Hole Thread sizes:

• • Limbs Bolts: M8
  • Limbs Bolts side locking: 4 x M5
  • Limbs Pockets side locking: 4 x M6
  • Alignment plate inner locking: 2 x M6
  • Alignment plate side locking: 4 x M5
  • Front stabs: 3 x 5/16-24 UNF
  • Rear stabs: 3 x 5/16-24 UNF
  • Cushion plunger: 2 x 5/16-24 UNF
  • Clicker and Clicker plate: 3 x M4
  • Optional cover: 4 x M4
  • Sight: 2 x 10-24
  • Grip: 2 x M4
