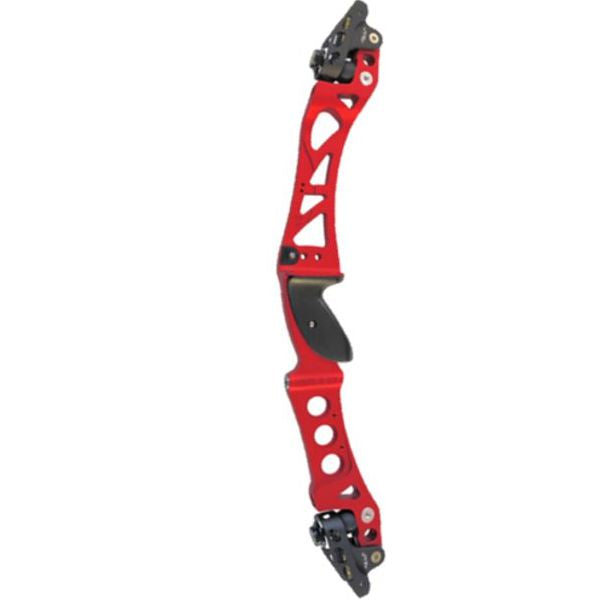

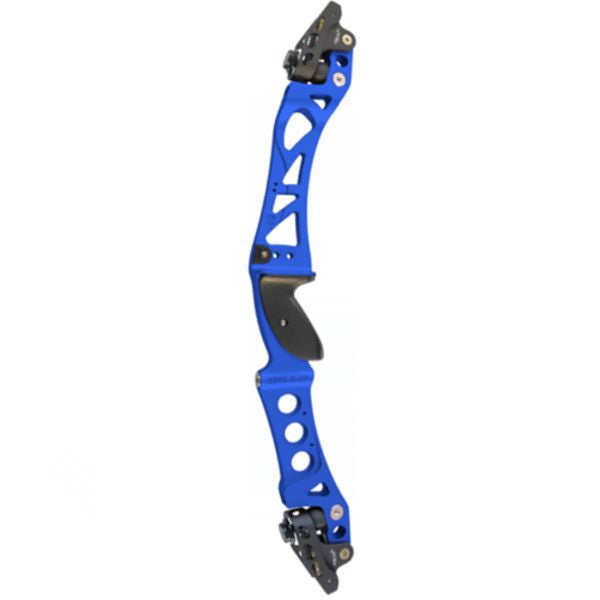

Gillo GT M 25in ILF riser

A lower cost version of the Gillo GT riser. The GT M includes most features of the standard 25in ILF model including the floating limb pocket design with 30% poundage adjustment range and limb alignment system, but with standard stainless steel bolts and a black colour plastic grip. Available in selected RH and LH models in matt anodized finish.

• Recurve & Bare Bow riser
• ILF Limbs compatible

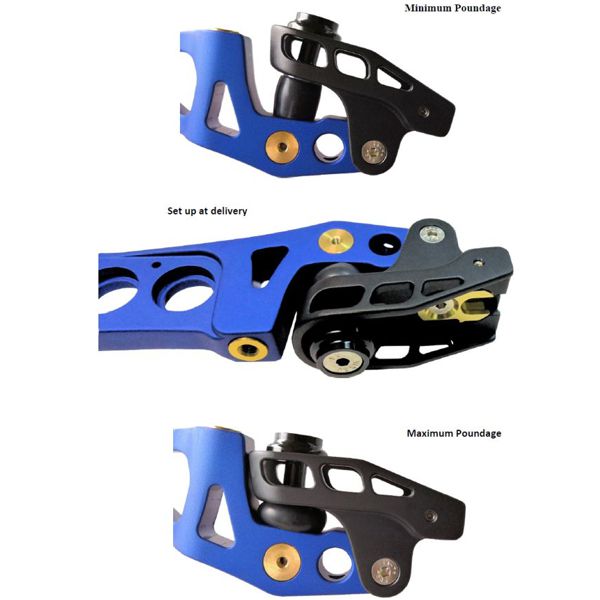

• Floating limbs pockets allow over 30% poundage adjustment range
• Integrated shock absorbers
• 25in length, RH and LH versions
• Body and Pockets machined from solid Aluminium bar
• Matte sandblasted anodized surface
• Aluminium 7075 Limbs alignment plates
• Special round seats for optional balancing weights
• Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
• G1 ABS black colour medium grip

• 2 front and 3 back 5/16-24 UNF tapped holes on back for more stabilizers
• Front center stabilizer bushing 1mm off from axis for perfect balance
• Compatible to all G1, GQ and G5 Bare Bow weights, grips and accessories
• Approx. 1290g total weight
• Packing includes long clicker plate, Manual with Warranty card, 4 Allen wrenches, 5 clicker and BB weights SS screw, 2 bolt locking Brass grub screws

Dual Colour Options:

• RH Black/Blue (KBL)

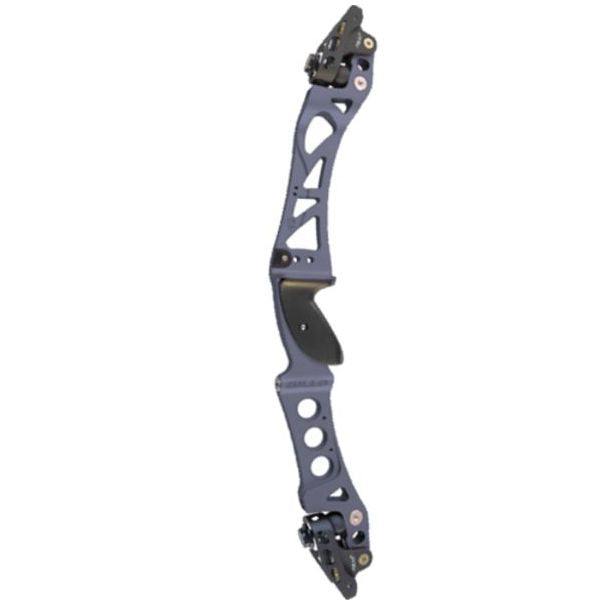

• RH Black/Grey (KGY)

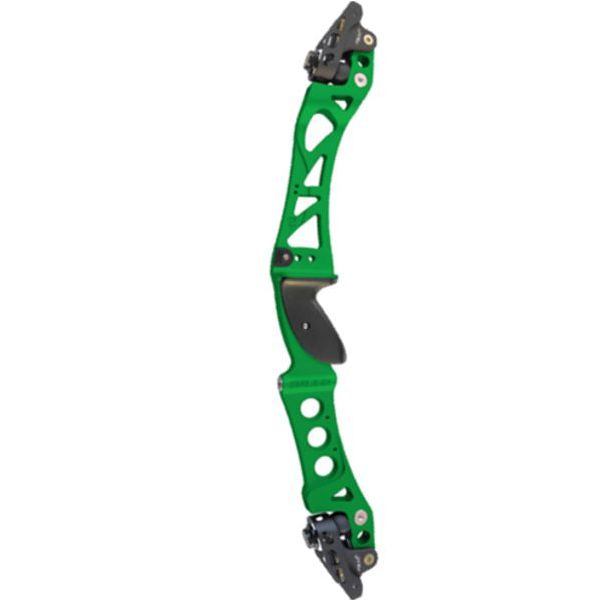

• RH Black/Green (KGR)
• RH Black/Red (KRD)

Optional accessories available:

• G03-PF-01-AL-BK - pair of Formula limbs pocket to transform riser to G03L-RSF-27 version
• G04-DK6-AL/ST - 6 disk weights kit (Al Black, SS Gold)
• G01-DK6 - 6 Stainless Steel disk weights kit
• G05-DK2 - 2 steel disk heavy weights kit
• G03-DK2-TG - 2 Tungsten Disks gold colour
• G02-CKK - Plastic clicker plates in different colours and length
• G01-BW-01 - Bare Bow covers from 270g to 830g
• G01-BW-02 - Bare Bow Covers from 400g to 1170 g
• G03-BW-03 - The Hammers - Bare bow kit, AL or SS
• G04-BW-04 - Bare Bow covers from 300g to 950g
• Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
• Various grips made by wood or plastic 3D printed in various colours

Hole Thread sizes:

• Limbs Bolts: M8
• Limbs Bolts side locking: 4 x M5
• Limbs Pockets side locking: 4 x M6
• Alignment plate inner locking: 2 x M6
• Alignment plate side locking: 4 x M5
• Front stabs: 3 x 5/16-24 UNF
• Rear stabs: 3 x 5/16-24 UNF
• Cushion plunger: 2 x 5/16-24 UNF
• Clicker and Clicker plate: 3 x M4
• Optional cover: 4 x M4
• Sight: 2 x 10-24
• Grip: 2 x M4
